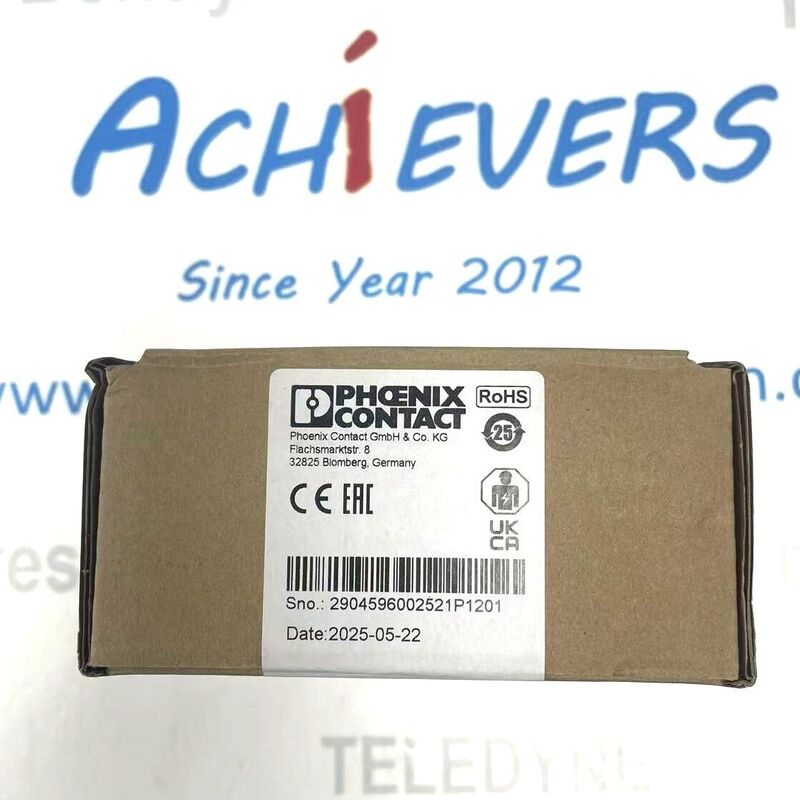

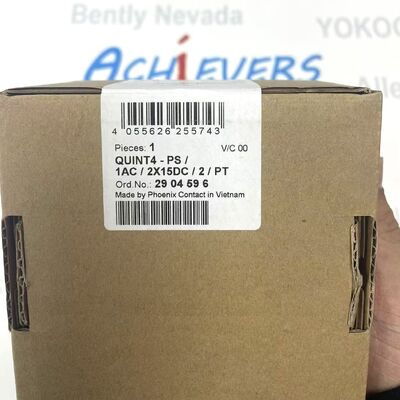

Phoenix Contact QUINT4-PS1AC/2X15DC/2/PT 2904596 PT Power Supply
Product Details:
Manufacturer : Phoenix Contact
Product No. : 2904596
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
ThePhoenix Contact QUINT4-PS1AC/2X15DC/2/PT is a high-efficiency, single-phase switched-mode power supply designed for reliable power distribution in industrial automation systems. As a core product in Phoenix Contact’s QUINT4 product family, it delivers stable dual ±15V DC output with exceptional performance, combining compact design with robust protection features. This power supply is specifically engineered for DIN rail mounting, ensuring seamless integration into control cabinets across diverse industrial sectors while maintaining consistent operation in harsh environmental conditions — a key advantage for businesses seeking long-term reliability in critical automation setups.
Detail:
|
Specification Category
|
Details
|
|
Product Type
|
Switched-Mode Power Supply (SMPS)
|
|
Product Family
|
QUINT4
|
|
Manufacturer
|
Phoenix Contact
|
|
Product Model
|
QUINT4-PS1AC/2X15DC/2/PT
|
|
Mounting Type
|
DIN Rail (NS 35/7.5)
|
|
Input Type
|
Single-Phase AC / DC
|
|
Nominal Output Voltage
|
±15V DC (Dual Output)
|
|
Connection Method
|
Push-In Connections
|
|
Operating Temperature Range
|
-25°C to +70°C
|
|
Degree of Protection
|
IP20
|
|
Flammability Rating (Housing)
|
UL 94 V0
|
|
Dimensions (W×H×D)
|
36 mm × 124 mm × 120 mm
|
|
Performance Parameter
|
Value
|
|
AC Input Voltage Range
|
100V AC – 240V AC (-15% to +10%)
|
|
DC Input Voltage Range
|
110V DC – 250V DC (-20% to +10%)
|
|
Nominal Output Current
|
2A (+15V DC); 1.4A (-15V DC)
|
|
Static Boost Current
|
2.5A (+15V DC, ≤40°C)
|
|
Dynamic Boost Current
|
4A (+15V DC, ≤60°C, 5s)
|
|
Typical Efficiency
|
88.8% (120V AC); 89.4% (230V AC)
|
|
Output Ripple
|
≤60 mVpp (at nominal values)
|
|
Test Voltage (Input/Output)
|
4 kV AC (50 Hz, 1 min)
|
|
Overvoltage Protection (OVP)
|
≤18V DC (output)
|
|
Line Regulation
|
<0.1% (±10% input voltage change)
|
|
Load Regulation (Static)
|
<0.5% (10% to 90% load change)
|
|
Maximum Power Dissipation
|
<6.6W (120V AC); <6.1W (230V AC)
|
