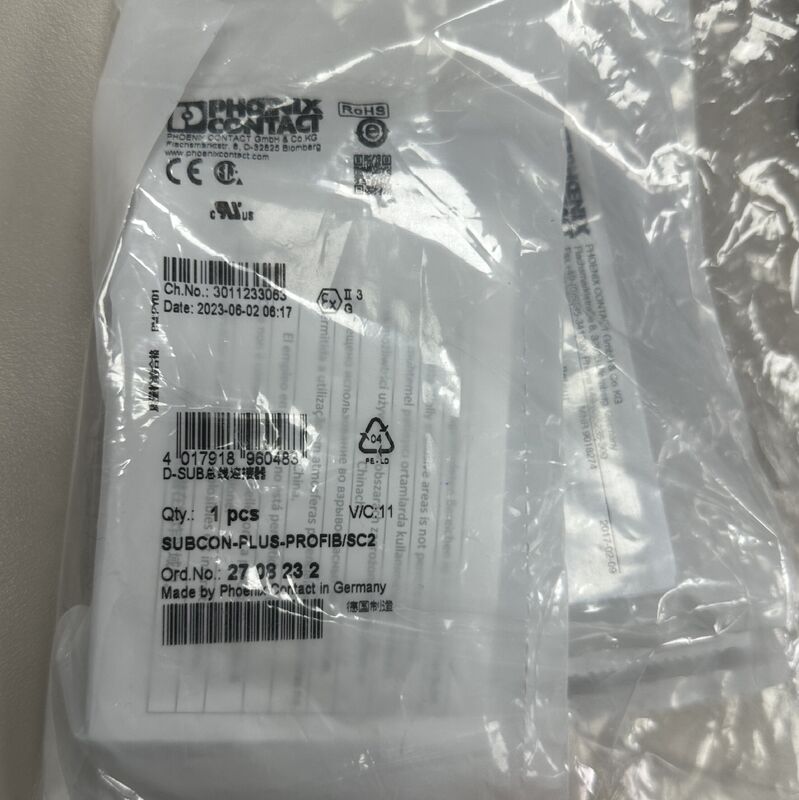

Phoenix Contact SUBCON-PLUS-PROFIB/SC2 2708232 D-SUB Bus Connector
Product Details:
Manufacturer : Phoenix Contact
Product No. : 2708232
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Phoenix Contact SUBCON-PLUS-PROFIB/SC2 2708232 is a high-performance D-SUB bus connector specifically engineered for PROFIBUS DP systems, designed to enable reliable data transmission in industrial automation environments. As a core product in Phoenix Contact’s bus connector lineup, it features a 9-pin male D-SUB configuration, 35° angled cable outlet, and an integrated termination resistor with slide switch control. This connector is built for easy field installation, with a reversible internal connection unit that allows flexible cable entry from the left or right, making it a versatile solution for industrial control systems where seamless bus connectivity and durability are critical.
Detail:
|
Specification Category
|
Details
|
|
Product Type
|
D-SUB Bus Connector (PROFIBUS DP)
|
|
Product Family
|
SUBCON-PLUS Series
|
|
Manufacturer
|
Phoenix Contact
|
|
Product Model & Part Number
|
SUBCON-PLUS-PROFIB/SC2 2708232
|
|
Connector Type
|
9-pin Male D-SUB
|
|
Bus System
|
PROFIBUS DP
|
|
Connection Method
|
Screw Connection Terminal Blocks
|
|
Housing Material
|
ABS (Metal-Plated)
|
|
Operating Temperature Range
|
-20°C to +75°C (Operation); -25°C to +80°C (Storage/Transport)
|
|
Degree of Protection
|
IP40
|
|
Insertion/Withdrawal Cycles
|
>200 Cycles
|
|
Cable Outlet Angle
|
35° Angled
|
|
Performance Parameter
|
Value
|
|
Nominal Voltage (Uₙ)
|
50 V (General); 5 V (Signal)
|
|
Nominal Current (Iₙ)
|
100 mA
|
|
Maximum Power Dissipation (Nominal Condition)
|
0.025 W
|
|
Transmission Speed
|
Up to 12 Mbps
|
|
Termination Resistor Value
|
390 Ω, 220 Ω (Switchable)
|
|
Pin Assignment
|
3, 5, 6, 8 (PROFIBUS Signal)
|
|
Conductor Cross-Section (Rigid)
|
0.14 mm² (Min) – 1.5 mm² (Max)
|
|
Conductor Cross-Section (Flexible)
|
0.14 mm² (Min) – 1.0 mm² (Max)
|
|
Stripping Length
|
5 mm
|
|
Tightening Torque (Terminal Blocks)
|
0.22 Nm – 0.25 Nm
|
|
Tightening Torque (Fixing Screws)
|
0.4 Nm (4-40 UNC Screws)
|
|
Transmission Medium
|
Copper
|
