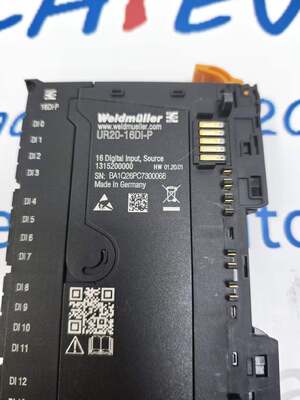

Weldmuller UR20-16DI-P u-remote 16-Channel PNP Digital Input Remote I/O Module
Description:
Description: Danfoss
Product No. : UR20-16DI-P
https://www.achievers-automation.com More Products
The Weidmuller UR20-16DI-P is a slim 16-channel PNP digital input remote I/O module designed for decentralized industrial automation signal acquisition, belonging to the universal u-remote modular I/O platform. The suffix -P stands for PNP positive switching logic, compatible with Type 1 & Type 3 standard proximity sensors per EN 61131-2.
This ultra-narrow 11.5mm width module adopts push-in spring terminal wiring without screwdrivers, supporting single-conductor sensor connection. Built-in 3ms hardware input filter suppresses on-site electromagnetic interference and switch bounce signals. 500VDC galvanic isolation separates field sensor circuits and internal system bus to avoid ground loop crosstalk. Integrated reverse polarity protection prevents permanent damage from reversed 24VDC wiring.
Detail:
| Parameter Item |
Technical Specification |
| Full Part Number |
UR20-16DI-P |
| Manufacturer |
Weidmuller |
| Factory Order Code |
1315200000 |
| Product Category |
u-remote Remote Digital Input Module |
| Digital Input Quantity |
16 Channels |
| Switching Logic |
PNP Positive Switching |
| Compatible Sensor Standard |
Type 1, Type 3 (EN 61131-2) |
| Rated Supply Voltage |
24 VDC (-15% ~ +20%) |
| High Input Threshold |
> 11 VDC |
| Low Input Threshold |
< 5 VDC |
| Input Hardware Filter Time |
3 ms fixed |
| Max Input Switching Frequency |
1 kHz |
| Sensor Connection Mode |
Single-wire connection |
| Onboard Auxiliary Sensor Power |
Not available (external 24VDC required) |
| Galvanic Isolation Strength |
500 VDC between field side & system bus |
| Reverse Polarity Protection |
Integrated for power circuit |
| System Bus Consumption (Typ.) |
8 mA |
| Power Segment Current Draw |
< 25 mA |
| Process Data Length |
2 Byte (16-bit digital input mapping) |
| Module Overall Dimensions (W×H×D) |
11.5 mm × 120 mm × 76 mm |
| Net Weight |
44 g |
| Mounting Standard |
TS35 DIN Rail Snap-on Installation |
| Wiring Terminal Type |
Push-in Spring Terminal |
| Supported Wire Cross-Section |
0.14 ~ 1.5 mm² solid/stranded wire (AWG26 ~ AWG16) |
| Specification Item |
Technical Value |
| Operating Ambient Temperature |
-20 °C ~ +60 °C |
| Storage & Transport Temperature |
-40 °C ~ +85 °C |
| Relative Humidity |
5% ~ 95% RH, non-condensing |
| Vibration Resistance Standard |
IEC 60068-2-6, 1g acceleration (8.4 Hz ~ 150 Hz) |
| Shock Resistance Standard |
IEC 60068-2-27 industrial grade |
| Ingress Protection Rating |
IP20 (Control Cabinet Internal Use Only) |
| Supported Fieldbus Protocols |
PROFINET RT/IRT, EtherCAT, Modbus/TCP, EtherNet/IP, PROFIBUS DP-V1, CANopen, CC-Link IE TSN |
| System Bus Max Transmission Speed |
48 MBit/s |
| Diagnostic Function |
Global module fault diagnosis (no independent channel diagnosis) |
| EMC Compliance |
EN 61000-6-2 industrial environment standard |
| Global Safety Certifications |
cULus, CE Mark, RoHS Compliant (RoHS 7a/7cI Exemption) |
| REACH SVHC Compliance |
Contains lead SVHC substance per standard specification |
| ETIM Classification Code |
EC001599 |
| Carbon Footprint (Cradle-to-Gate) |
8,684 kg CO₂ eq. |
| Service Lifespan |
Over 10 million plug/unplug module replacement cycles |
