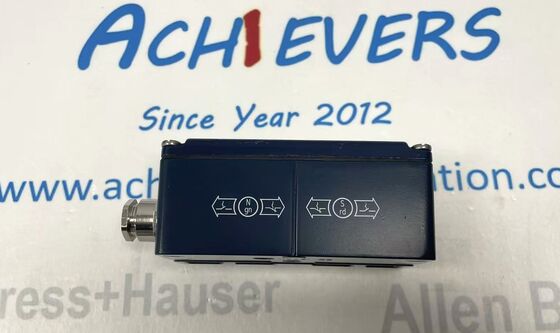

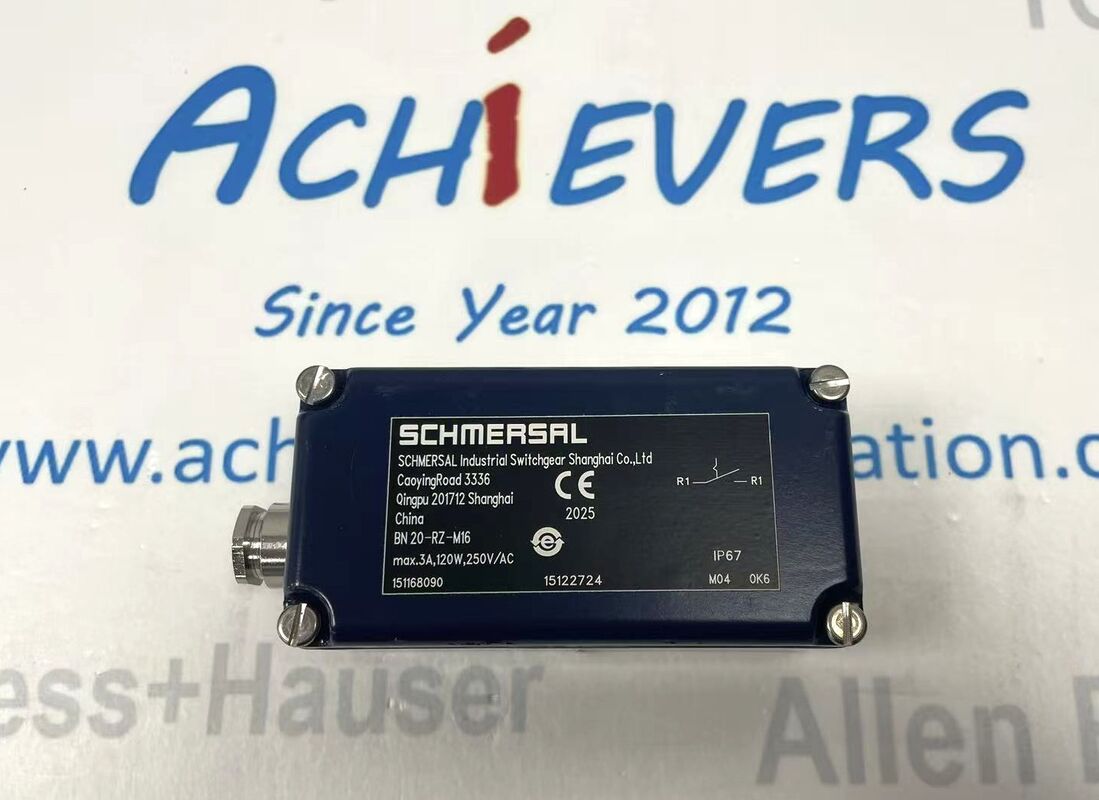

Schmersal BN 20-RZ-M16 Magnetic Reed Switch
Description:
Manufacturer : Schmersal
Product No. : BN 20-RZ-M16
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Schmersal BN 20-RZ-M16 is a premium magnetic reed switch designed for reliable position sensing and control in demanding industrial environments. Leveraging non-contact magnetic actuation technology, this switch offers exceptional durability, high vibration resistance, and a long operational lifespan, making it an ideal solution for applications requiring precise and maintenance-free switching performance. As a trusted product from Schmersal—a global leader in industrial safety and control components—the BN 20-RZ-M16 adheres to international standards and delivers consistent performance in harsh working conditions.
Detail:
|
Parameter Category
|
Specification Details
|
|
Ordering Information
|
Article Number: 101168090; EAN: 4030661220567; ETIM 7.0: EC002544
|
|
Electrical Parameters
|
Max Switching Voltage: 250 VAC; Max Switching Current: 3 A; Max Switching Capacity: 120 W / 120 VA; Switching Frequency: 1,080,000 cycles/h; Bounce Duration: 0.3-0.6 ms
|
|
Mechanical Dimensions
|
Length: 47 mm; Width: 104 mm; Height: 52 mm; Gross Weight: 290 g
|
|
Switching Distances
|
Switching Distance (Sn): 5-50 mm (depending on actuator); Repeat Accuracy: 0.3 mm; Max Actuating Speed: 18 m/s
|
|
Environmental Conditions
|
Ambient Temperature Range: -25 °C to +90 °C; Protection Rating: IP67; Vibration Resistance: 50 g (sine wave)
|
|
Connection & Construction
|
Connection Type: Screw Terminals (M20 x 1.5); Housing Material: Aluminum; Housing Shape: Rectangular; Active Area: Metal Film
|
Brand
Schmersal is a German industrial low-voltage switch and machine control component company headquartered in Wuppertal, Germany, founded in 1945. After years of technological and product innovation, the company has developed into a global group company with approximately 1,300 employees worldwide and annual sales of 170 million euros. In addition, Shanghai Schmersal Electric Co., Ltd. is a leading domestic professional supplier of material conveying automation and monitoring. It was established in 1999 and is headquartered in the southern area of Shanghai Jinqiao Processing Zone. It is mainly engaged in product solutions and services of sensing technology, sensing measurement and control systems, and material conveying systems.
