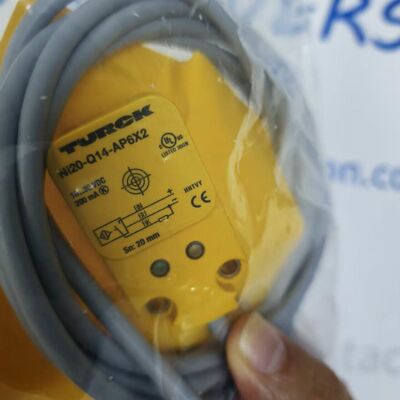

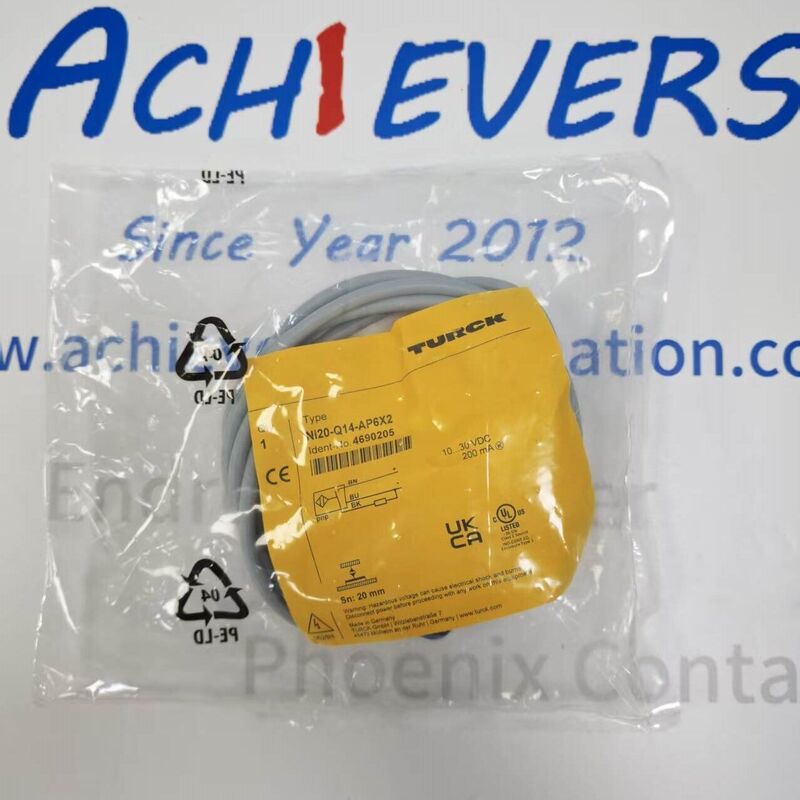

Turck NI20-Q14-AP6X2 Rectangular Inductive Proximity Sensor
Product Details:
Manufacturer :Turck
Product No. :NI20-Q14-AP6X2
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
This sensor variant features a PNP normally open (NO) switching output, paired with a detachable M12 × 1 4-pin plug connector to simplify wiring, maintenance and rapid field replacement. Encapsulated in impact-resistant PA6 polyamide plastic with full IP68 ingress protection, the unit resists continuous water submersion, heavy dust accumulation and mild industrial chemical splashes. Integrated reverse polarity, overload and short-circuit protection circuits prevent permanent component damage from wiring errors or circuit overload during commissioning.
Detail:
| Spec Category |
Exact Parameter Value for RNI20-Q14-AP6X2 |
| Full Model Code |
RNI20-Q14-AP6X2 |
| Product Series |
Turck RNI Q14 Rectangular Inductive Proximity Sensor |
| Detection Principle |
Eddy-current inductive metal detection |
| Mounting Type |
Non-flush mounting (full 20mm Sn rating maintained) |
| Nominal Sensing Distance (Sn) |
20 mm |
| Safe Operating Range (Sa) |
0 – 16.2 mm |
| Hysteresis |
3% – 15% of Sn (typical 8%) |
| Switching Function |
PNP Normally Open (NO) |
| Operating Supply Voltage |
10 V DC – 30 V DC |
| No-load Supply Current |
≤ 15 mA |
| Max Switching Output Current |
200 mA resistive load |
| Switching Frequency |
100 Hz |
| Voltage Drop across Output |
≤ 1.8 V DC |
| Circuit Protection |
Reverse polarity, short-circuit, overload protection |
| Status Indicator |
360° visible yellow LED switching signal light |
| EMC Compliance |
IEC / EN 60947-5-2 industrial electromagnetic compatibility |
| Reduction Factor rFe (Steel) |
1.00 |
| Reduction Factor rAl (Aluminum) |
0.58 |
| Reduction Factor rCu (Copper) |
0.52 |
| Functional MTTFd |
> 1000 years |
| Physical & Environmental Item |
Standard Technical Data |
| Housing Form Factor |
Q14 rectangular block housing |
| Overall Housing Dimensions |
70 mm (L) × 30 mm (W) × 14 mm (D) |
| Housing Material |
Reinforced PA6 impact-resistant polyamide plastic |
| Protection Rating |
IP68 dustproof and waterproof (permanent submersion capable) |
| Electrical Connection |
M12 × 1, 4-pin male plug connector |
| Mounting Points |
2 integrated threaded mounting holes for bracket installation |
| Operating Ambient Temperature |
-25 °C ~ +70 °C (-13 °F ~ 158 °F) |
| Storage & Transport Temperature |
-40 °C ~ +80 °C (-40 °F ~ 176 °F) |
| Relative Humidity Tolerance |
5% – 95%, non-condensing |
| Vibration Standard Compliance |
IEC 60068-2-6 industrial vibration test |
| Shock Resistance |
IEC 60068-2-27 mechanical shock rating |
| Net Unit Weight |
Approx. 85 g |
| Wire Compatibility |
Standard M12 sensor cable accessories (sold separately) |
| Certifications |
CE marked, RoHS compliant |
Brand
Turck Banner Inductive Proximity Sensors
Inductive sensors are designed for contact-less and wear-free detection. They are the perfect solution for breweries, frozen food, dairies and packaging applications. Resistant to cleaning agents and disinfectants and exceed the protection classes IP68 & IP69K. These sensors are available as standard versions in chrome plated brass blocks or stainless steel housing with LCP front cap and double lip seal for heavy use or sudden changes in temperature. All inductive sensors of the new uprox+ generation operate with highest switching distances, feature an extended temperature range and are easily mounted.
Achievers Automation Limited has more than 12 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
Q:Which are the best-selling products?
A: Many brands of products have been supplied . For example, MTL safety barrier MTL5541, Endress Hauser RS33 , P+F safety barrier KFD2-SR2-Ex2.W,Hand Communicator TREXCHPNAWS1S
