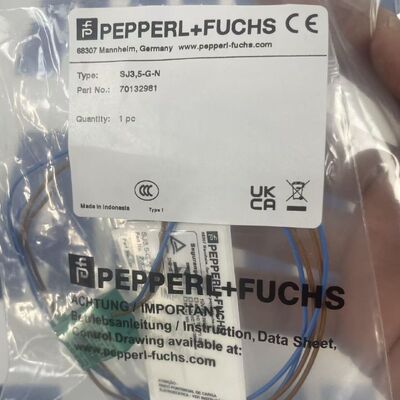

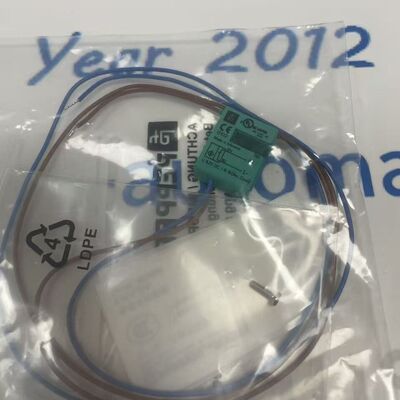

Pepperl+Fuchs SJ3,5-G-N Inductive Slot Sensor
Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : SJ3,5-G-N
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The SJ3,5-G-N is an inductive slot sensor specifically designed to detect metal objects within its 3.5 mm slot, eliminating the need for physical contact and ensuring non-intrusive detection. It features a lateral immersion depth of 5 to 7 mm (typically 6 mm), a 2-wire design, and NAMUR output, making it versatile for various industrial applications that require high-frequency switching and precise target detection. The sensor’s PBT housing and flexible LIY leads ensure excellent resistance to industrial wear, chemicals, and environmental stress, while its lightweight design simplifies installation in space-constrained areas.
Pepperl+Fuchs’ commitment to quality is evident in the SJ3,5-G-N, which complies with international industry standards including NAMUR EN 60947-5-6:2000 and IEC 60947-5-6:1999. This sensor is engineered to operate seamlessly in a wide temperature range, from -25 °C to 100 °C, ensuring reliable performance even in challenging industrial settings such as high-temperature environments, dusty areas, or wet conditions.
Detail:
|
Specification
|
Details
|
|
Product Model
|
SJ3,5-G-N
|
|
Manufacturer
|
Pepperl+Fuchs
|
|
Sensor Type
|
Inductive Slot Sensor
|
|
Slot Width
|
3.5 mm
|
|
Lateral Immersion Depth
|
5 - 7 mm, typical 6 mm
|
|
Switching Function
|
Normally Closed (NC)
|
|
Output Type
|
2-Wire, NAMUR (requires approved switch amplifiers)
|
|
Supply Voltage
|
5 - 25 V DC
|
|
Switching Frequency
|
0 - 3000 Hz
|
|
Current Consumption
|
≥ 3 mA (measuring plate not detected); ≤ 1 mA (detected) @ nominal voltage
|
|
Category
|
Specifications
|
|
Housing Design
|
Slim Compact Module, PBT Material
|
|
Connection Type
|
Flexible LIY Leads, 500 mm PVC Cable
|
|
Cable Specifications
|
Diameter: 1.1 ± 0.1 mm; Core Cross Section: 0.14 mm²; Bending Radius: >10×cable diameter
|
|
Protection Class
|
IP67
|
|
Operating Temperature
|
-25 °C to 100 °C (-13 °F to 212 °F)
|
|
Storage Temperature
|
-25 °C to 100 °C (-13 °F to 212 °F)
|
|
Dimensions
|
19.5 mm (Length) × 10 mm (Width) × 15 mm (Height)
|
|
Weight
|
Approx. 10 g
|
|
Certifications & Standards
|
NAMUR EN 60947-5-6:2000, IEC 60947-5-6:1999, IECEx, ATEX, UL, CSA, CCC Approved
|
